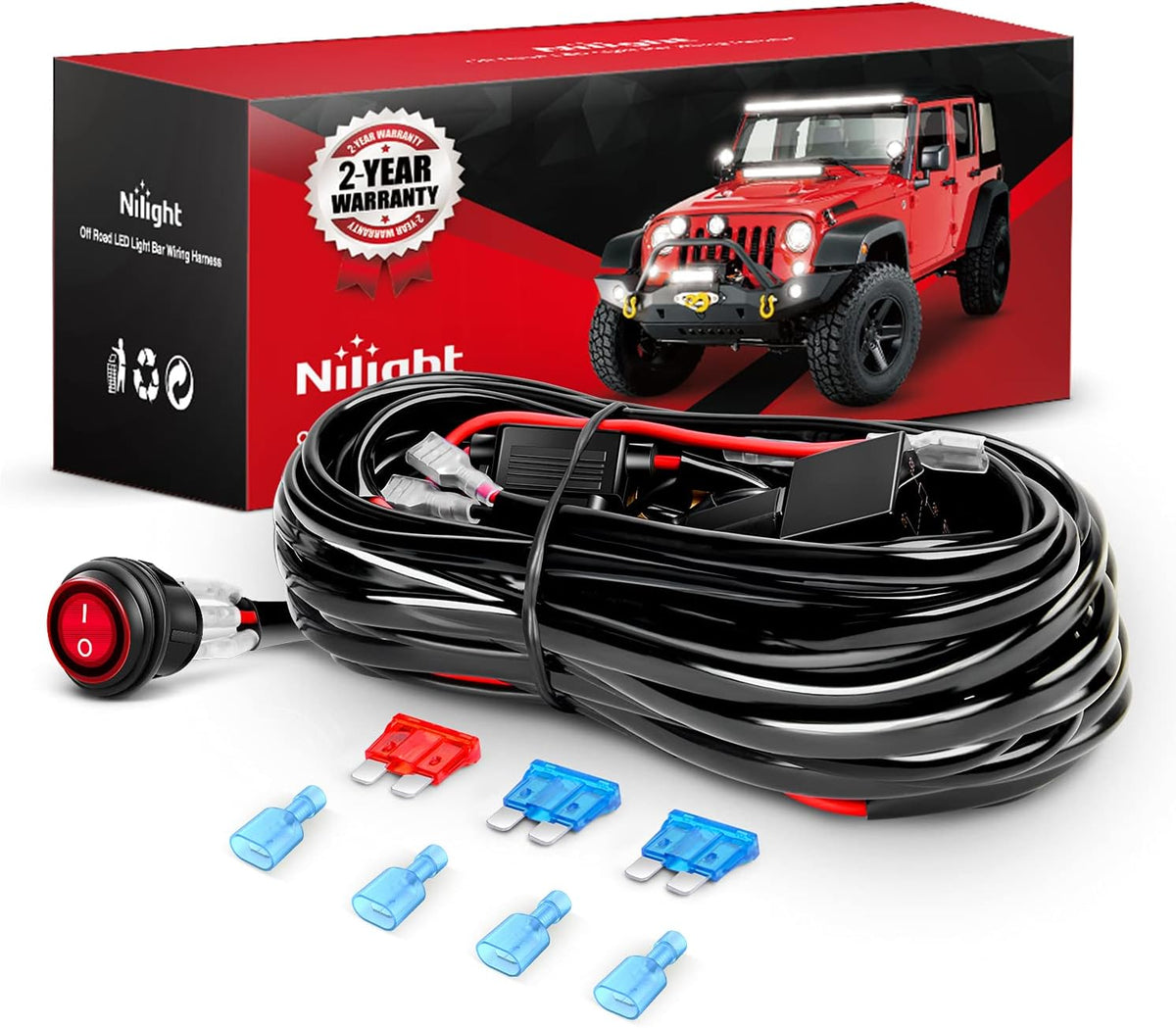

Nilight - NI -WA 06 LED Light Bar Wiring Harness Kit - 2 Leads 12V On Off Switch Power Relay Blade Fuse for Off Road Lights LED Work Light, 2 Years Warranty
Prices and availability are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply.
We make things that work better and last longer. Our products solve real problems with clean design and honest materials.
Nilight - NI -WA 06 LED Light Bar Wiring Harness Kit - 2 Leads 12V On Off Switch Power Relay Blade Fuse for Off Road Lights LED Work Light, 2 Years Warranty
Prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on Amazon at the time of purchase will apply to the purchase of this product.
Features:
Power Rocker Switch
It is designed for easy control of LED lights, which also illuminates charming red to decorate your love car.

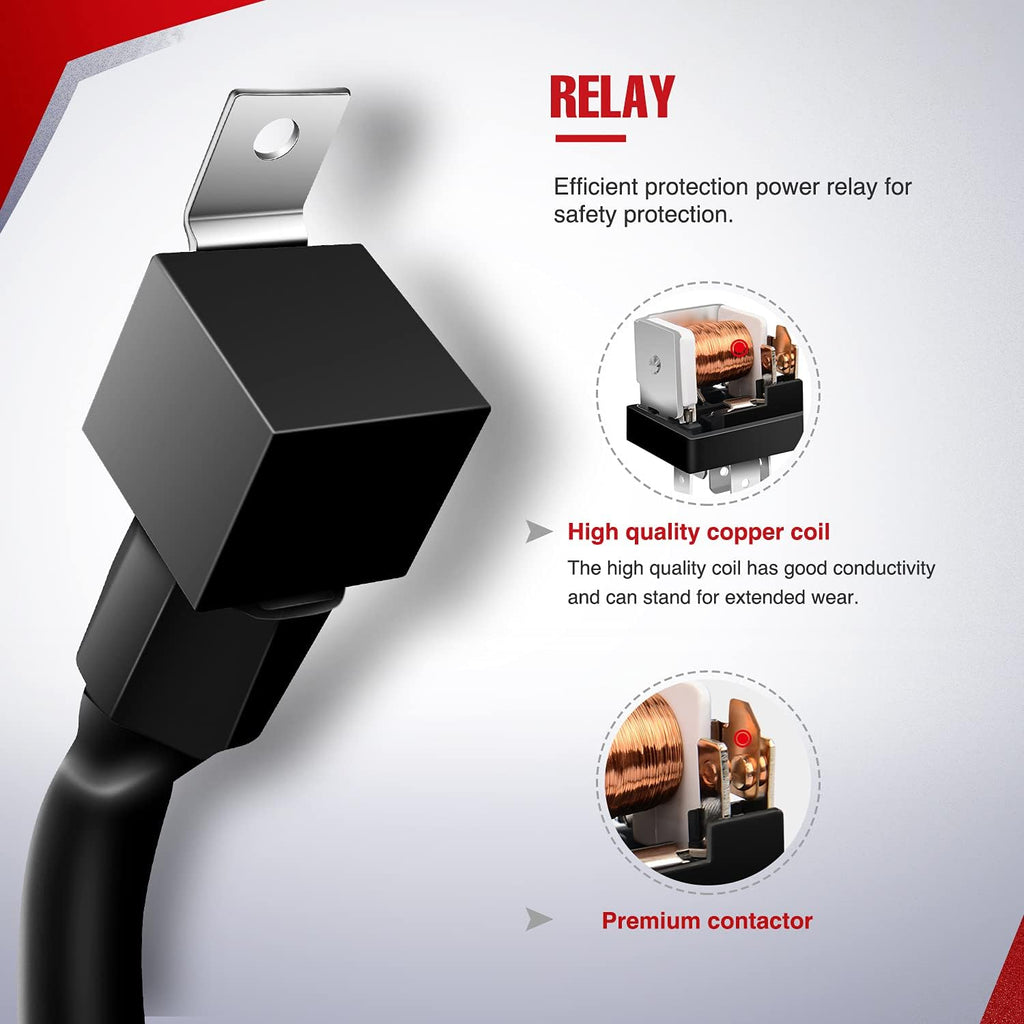

Automotive Relay
The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.
Two Leads
With two sets of light output connectors, the wiring harness can hook up two LED lights within 180W at the same time.
Water-resistant Lid
Specially designed cap for tight sealing, efficiently prevent water and dust from entering, upgrading waterproof performance.
How it works?

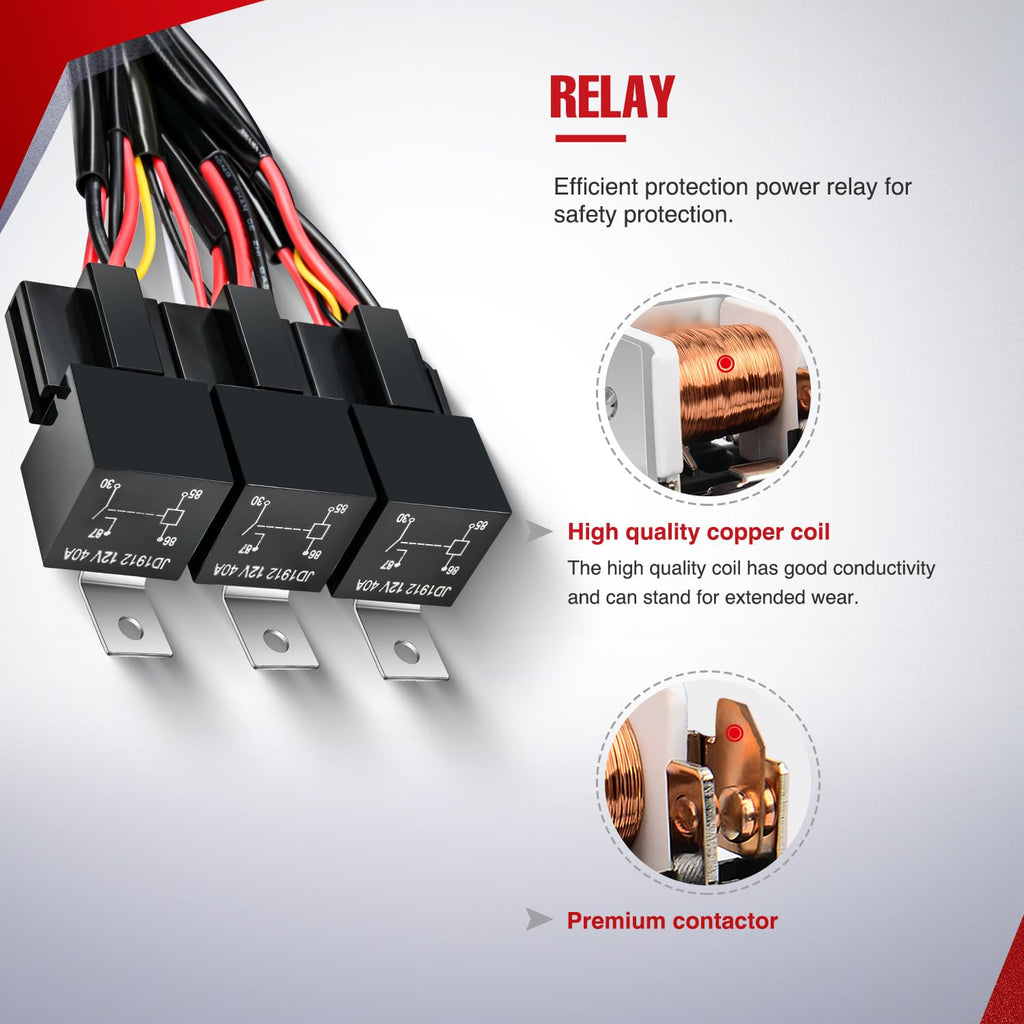

Working principle and characteristics of the relay
It is actually an "automatic switch" that uses a smaller current to control a larger current. Relay plays the role of automatic adjustment, safety protection, and conversion circuits in the circuit.

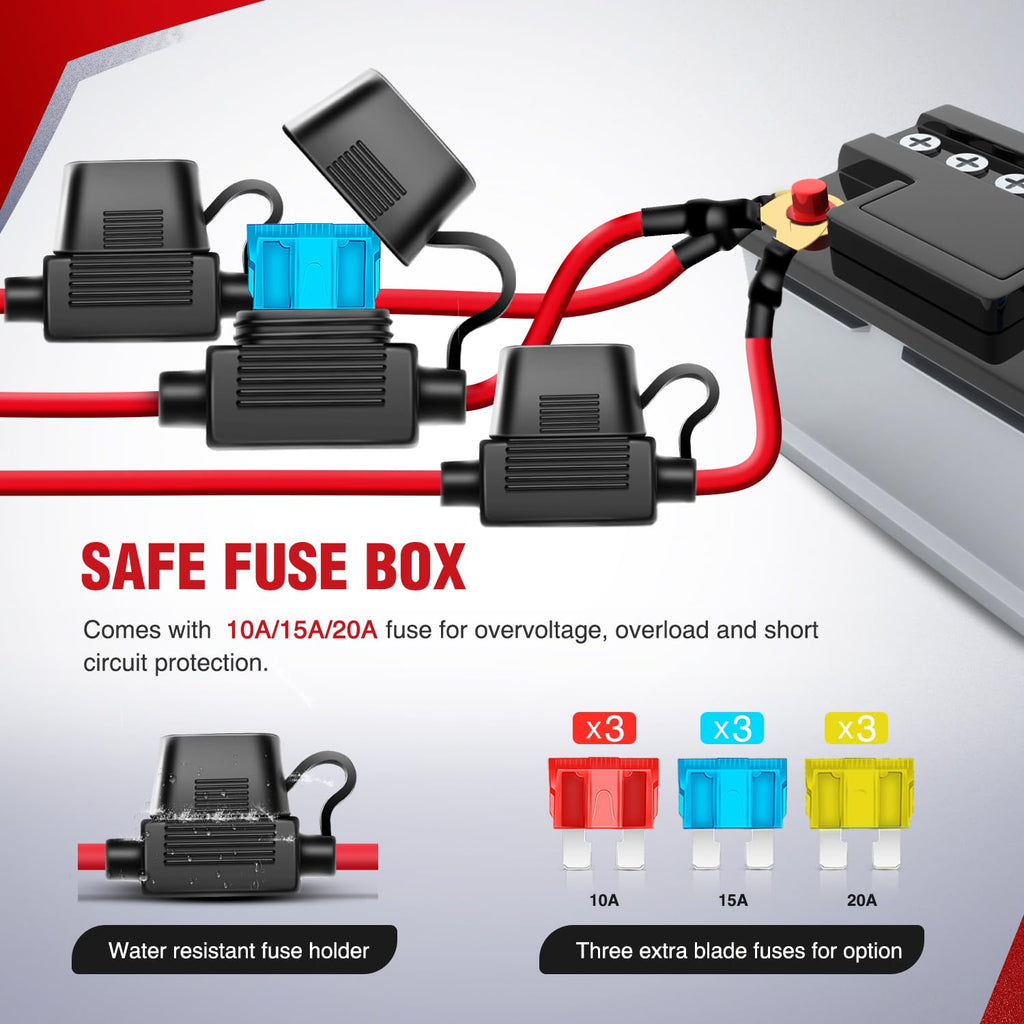

How Do Fuses Work?
They consist Of a fusible element that melts or vaporizes when the current exceeds the fuse rating, breaking the electrical connection and thus safeguarding electrical devices.
-
-
-
Power 3Pin Rocker Switch
It is designed for easy control of LED lights, also illuminates charming red to decorate your car.
-
Operating Voltage: 12V DC Power
The relay is made with conductive pins. It effectively protect the circuit and the lighting system.
-
More scientific and safer
Max Wattage: 180W, Max Ampere: 15A
Fuse acts as the first Line of defense against overcurrent or short circuits to protect the circuit.
Installation Steps
Power Supply
Automotive Relay
Light Output Connectors
Switch Operation On-Off
Upgrade the light save your way in the darkness, rain, and foggy weather
- Off-Road Vehicles: sand rail, buggy, ATV, SUV, truck, train, motorbike, bus, tank, etc.
- Engineering Vehicles: excavator, Dozer, road roller, Tractor, Harvester, Grain Drill, Mower, Snowplow, bulldozer, crane, forklift, etc.
- Others: boat, fishing, courtyard lamp, yacht, road/ street lamp, etc.
Related Products
Wiring Harness Kit |
Wiring Harness Extension |
Switch Extension Kit |
Wiring Harness Kit |
Wiring Harness Kit |
Wiring Harness Kit |
Wiring Harness Kit |
|
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
31,607
|
4,012
|
439
|
3,314
|
510
|
7,716
|
233
|
|
Price
|
$10.79 | $8.09 | $9.99 | $19.50 | $15.29 | $15.29 | $17.08 |
|
Wire Gauge
|
16 AWG | 16 AWG | 22 AWG | 16 AWG | 16 AWG | 16 AWG | 14 AWG |
|
Length
|
10 FT | 10 FT | 5 FT | 15 FT | 10 FT | 10 FT | 10 FT |
|
Leads
|
2 Leads | 2 Pcs | 2 Pcs | 2 Leads | 4 Leads | 2 Leads | 2 Leads |
|
Switch
|
3 Pin Switch | — | — | 3 Pin Switch | 3 Pin Switch | 5 Pin Rocker Switch | 3 Pin Switch |
|
Max Working Current
|
15A | — | — | 15A | 15A | 15A | 25A |
|
Relay
|
✔ | ✘ | ✘ | ✔ | ✔ | ✔ | ✔ |
- Universal fit: Compatible with all automobiles, boats and devices equipped with a 12 volt power source
- Circuit protection: Power relay-safety protection and conversion circuit. Blade fuse protects the circuit when overcurrent or short circuit occurs.
- Illuminated switch: 3 pin on/off rocker switch with red indicator light when truing on, easy to turn on or off, has been passed test of 5,000 times pressing.
- Two available leads: With 2 sets of light output connectors for dual lighting fixtures less than 180W, the connection is more stable.
- Package include:1 x wiring harness kit, 1 x instructions.
| Brand | Nilight |
| Material | Aluminum |
| Item dimensions L x W x H | 7 x 1 x 2 inches |
| Item Weight | 1.6 ounces |
| Connector Type | Quick Connect |
